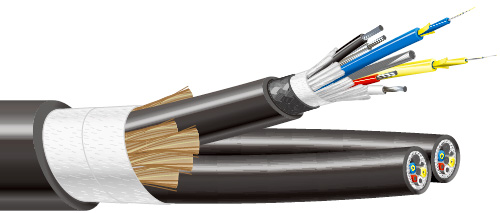

HFO Camera Cable (Multi Channel) |
| |
|
| |
 |
| |
LF-2SM7R-3P
Jacket color : black |
|
| |
|
| Model |
No. of
ch. |
Nom. O.D (mm) |
Unit O.D (mm) |
Weight kg / 100m |
Outer Jacket |
Tension
Tolerance
(N) |
Bend Radius |
Temp. Range |
LF-2SM7R-3P ،¹
|
3 |
19.4 |
7.1 |
36 |
PVC |
900 |
6 x over
of Nom.
O.D. |
-30°C to
+75°C |
LF-2SM7R-5P ،¹
|
5 |
23.7 |
56 |
،¹Production by order. Contact Canare sales for details.
Sales units (m) : Please contact Canare sales.

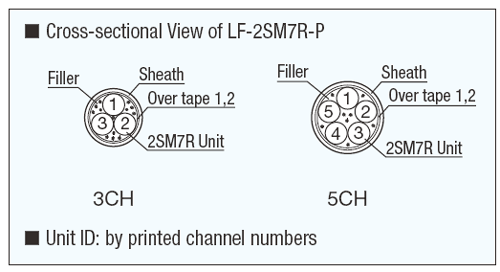

Unit composition : Refer to LF-2SM7R . |
| |
LF-2SM7R-P SERIES: |
|
،´ |
Canare multi channel hybrid fiber cables are now available in 3 or
5-channel format.
LF-2SM7R-P is designed with thin OD and light weight for ease of mobile HD applications. |
|
|
| |
|
| |
 |
| |
|
