Small connector body incorporates either a cable equalizer or cable driver. Connector alone satisfies SMPTE 424M standards, allowing easier design of tricky I/O block circuits for securing return loss performance and easier circuit board design in general.

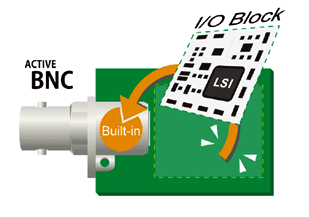

Active BNC connector integrates components that till now have been conventionally mounted on the PC board, thus minimizing board surface area requirements and reducing device size. |
| |
 |
| |
|
| |
|
| |
|
| |
Specifications |
| |
| Model |

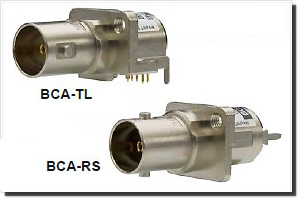

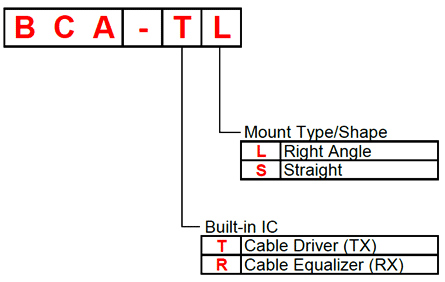

BCA-TL |
BCA-TS |
BCA-RL |
BCA-RS |
| Support Format |
3G-SDI, HD-SDI, SD-SDI, DVB-ASI |
| Supply Voltage |
3.3V ± 5% |
| Current Consumption |
50mA |
70mA |
| Operation Temperature |
-25¢J ¡ã +85¢J |
| Output Singnal Amplitude |
800mVpp ± 10% |
- |
| Equalizing Cable Length |
- |

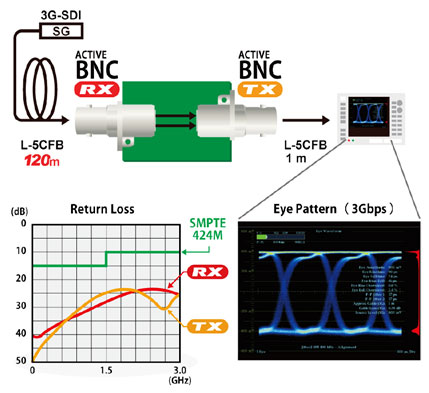

(3G-SDI) 120m with L-5CFB |
| Weight |
Approx. 9.0g |
| Compliant |
SMPTE 259M, 292M, 424M, BTA S-004C, EN50083-9 |
| Enviroment |
RoHS |
|
| |
 |
| |
- Innovative ¡§Active BNC¡¨ : regular size BNC with built-in cable equalizer or cable driver
- Dramatically reduce entire development cost
- PCB space saving
- SMPTE 259M, 292M and 424M
|
| |
 |
| |
|
|
| |
|
