¡½ Din 1.0/2.3 Crimp Plugs
Model Matching Cable Crimp Tool Die Set
DCP-C25HD L-2.5CHD, Belden 1855A TC-1 TCD-D253F
DCP-C3F L-3CFB, LS-3CFB TC-1 TCD-D253F

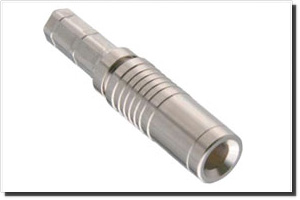

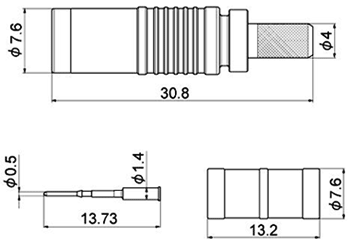

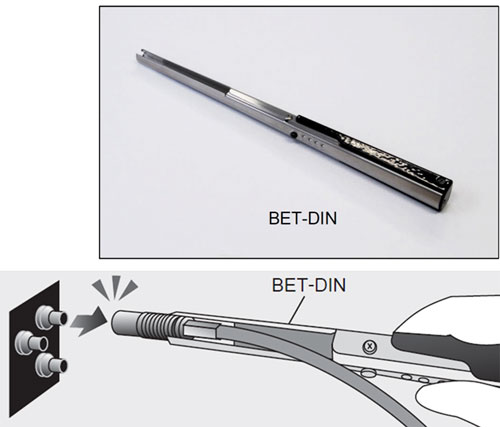

DCP - C25HD


  • IEC61169-29 and DIN 47 297 compatible
  • Ball-locking mechanism. Smooth action and reliable connection (PAT. Pend.)
  • Canare's original elongated sleeve design
  • Superior cable pull strength and bending performance
  • Captive Contact Pin

  Specifications

Items DCP-C Series
Applicable Standards IEC-61169-29, DIN 47 297
Nominal Impedance 75 Ohms Unbalanced
Return Loss 26dB or greater (0 - 2.0GHz)
20dB or greater (0 - 3.0GHz)
Center Pin Gold Plating
Cable Connecting Force 150N or more
Operating Temperature -40 to +85 ¢J
Weight Approx. 7.0g each
Origin China

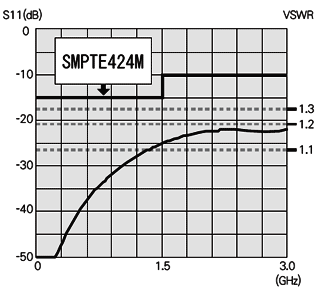

Return loss for DCP-C25HD




¡½ DIN 1.0/2.3 PCB Mount Receptacles
Model Description

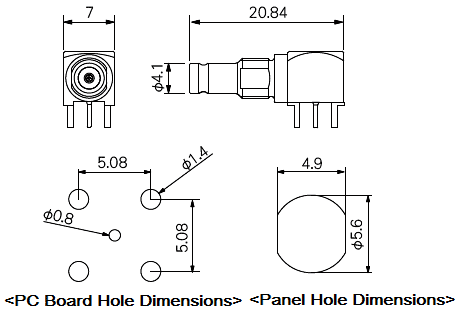

DCJ-LR Right Angle


DCJ - LR


  • 1.2 or less VSWR up to 3GHz.
  • Space saving design allows high density mounting.

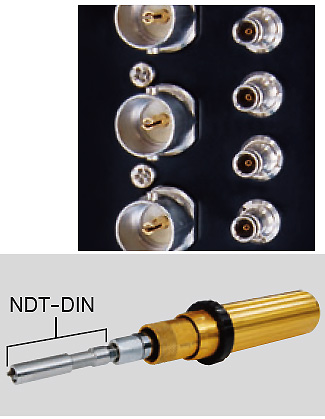

  • Hex nut tool required:NDT-DIN

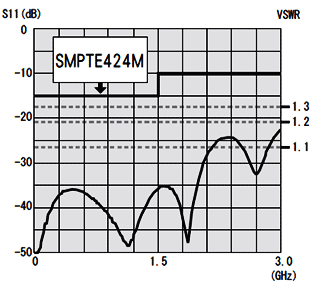

Return loss for DCJ-LR
