Canare true 75£[ BCP-C series have been widely used in a number of video formats analog to digital with outstanding
electrical and mechanical performance. Exceeding 3.0Gbps HD-SDI requirements specified in SMPTE424M. The highest
quality BNC in the market. |
|
| |
¡½ BCP-B Series (Straight Type)  |
VSWR 1.1@ 3GHz |
|
| Model |
Suitable Cable |
Center Pin |
Sleeve |
Boot |
Die Set |
| BCP-B25HD |
L-2.5CHD |
B11015E |
BN7129¡¹ |
CB02 |
TCD-35CA |
| BCP-B3F |
L-3CFB, LS-3CFB |
B11015E |
BN7003A |
CB03 |
TCD-35CA |
| BCP-B31F |
L-3CFW |
B11015E |
BN7015A |
CB04 |
TCD-4CA, TCD-451CA |
| BCP-B4F |
L-4CFB, LS-4CFB, Belden 1505A |
B11016E |
BN7015A |
CB04 |
TCD-4CA, TCD-451CA |
| BCP-B45HW |
L-4.5CHWS |
B11020D |
BN7016 |
CB05A |
TCD-35CA |
| BCP-B53 |
L-4.5CHD,
Belden 1694A |
B11020D |
BN7046 |
CB05A |
TCD-35CA |
| BCP-B5F |
L-5CFB, LS-5CFB |
B11020D |
B75004A |
CB05A |
TCD-5CF, TCD-55FA |
| BCP-B51F |
L-5CFW |
B11020D |
B75004A |
CB05A |
TCD-5CF, TCD-55FA |
|
Standard package
(20pcs / 100pcs) |
¡¹Custom models. Please ask us for ordering lot. |
- High performance of 1.1 or less VSWR up to 3GHz.
- Position mark on body allows the connector fit to be checked easily.
- Connector body only has been made die-cast, achieving lower price with high performance.
- Use of crimping to attach the connectors ensures quick, reliable installation.
- Lock mechanism used on insulation improves reliability by preventing shifting or detaching
of the contact pin.
- Gold plating on the contact pin prevents deterioration, even after years of use.
- Elongated body design enables easy attachment and removal.
|
| |

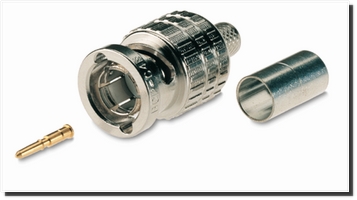

BCP-B5F |
| |
| |
BCP-B5F |
| |

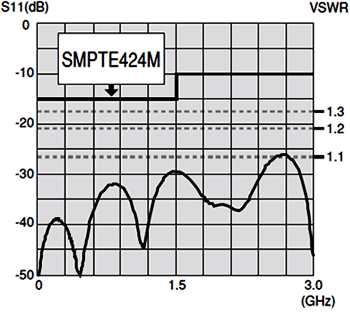

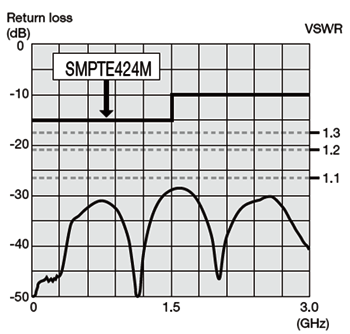

Return loss for BCP-B53 |
| |
| |
¡½ BCP-A Series (Straight Type) |
| Model |
Suitable Cable |
| Canare |
Belden (suggested) |
BCP-A25 |
L-2.5C2V |
¡X |
BCP-A25F |
L-2.5CFB |
1855A, 8218, 1417B, 1418B |
BCP-A31 |
L-3C2W |
¡X |
BCP-A3 |
L-3C2VS, L-3C2V, V¡¯-3C |
¡X |
BCP-VA3 |
V¡¯-3C |
¡X |
BCP-A4 |
LV-61S |
8241, 8279, RG-59B/U |
BCP-A52 |
L-5C2W |
¡X |
BCP-A5 |
L-5C2VS, L-5C2V, V¡¯-5C |
¡X |
BCP-VA5 |
V¡¯-5C |
¡X |
|
Standard package
(20pcs / 100pcs) |
¡¹Custom models. Please ask us for ordering lot. |
|
| |
| Model |
Center Pin |
Sleeve |
Boot |
Die Set |
BCP-A25 |
BN1018A ¡¹ |
BN7029C ¡¹ |
CB02 |
TCD-35CA |
BCP-A25F |
B11014E |
BN7029C ¡¹ |
CB02 |
TCD-35CA |
BCP-A31 |
B11014E |
BN7011 ¡¹ |
CB04 |
TCD-31C |
BCP-A3 |
B11014E |
BN7003A |
CB03 |
TCD-35CA |
BCP-VA3 |
B11014E |
BN7052A ¡¹ |
CB02 |
TCD-35CA |
BCP-A4 |
B11015E |
BN7015A |
CB04 |
TCD-451CA,
TCD-4CA |
BCP-C52 |
B11016E |
BN7014 ¡¹ |
¡X |
TCD-451CA |
BCP-A5 |
B11016E |
BN7016 |
CB05A |
TCD-35CA |
BCP-VA5 |
B11016E |
BN7045A ¡¹ |
CB05A |
TCD-35CA |
|
Standard package
(20pcs / 100pcs) |
¡¹Custom models. Please ask us for ordering lot. |
|
| |
