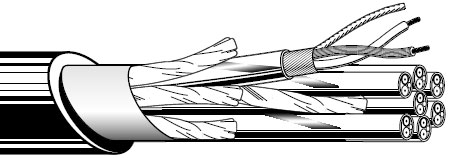

Ideal for conveying digital audio signals in conformance with AES/EBU and IEC standards. |
| |
|
| |
 |
| DA202F-8P Jacket color: blue |
|
| |
|
|
| |
| Model |
No. of ch. |
Sales units |
Nom. O.D |
Weight |
Unit composition |
| Cross sec area (AWG) and cond. comp. |
Twist pitch |
Shield cov-
erage(braid) |
Unit O.D. |
| m |
mm |
kg/100m |
 /(AWG)
Q'ty/mm |
mm |
% |
mm |
DA206 |
1 |
100
200 |
7.3 |
7.5 |
0.56(20)
7/0.32A |
60 |
95%
or
more |
¡X |
DA202 |
1 |
5.0 |
3.6 |
0.18(25)
7/0.18A |
32 |
95%
or
more |
¡X |
DA202AT |
1 |
4.0 |
2.0 |
0.18(25)
7/0.18A |
38 |
¡X |
¡X |
DA203AL |
1 |
6.0 |
4.7 |
0.29(23)
7/0.23TA
Overall tin
coated |
45 |
¡X |
¡X |
DA202F-2P¡¹ |
2 |
100
200
500 |
7.7 |
6.2 |
0.18(25)
7/0.18A |
25 |
91%
or
more |
3.0 |
DA202F-4P¡¹ |
4 |
8.8 |
10 |
DA202F-8P¡¹ |
8 |
11.5 |
17 |
DA202-2P ¡¹ |
2 |
¡X |
10.7 |
12 |
0.18(25)
7/0.18A |
32 |
95%
or
more |
4.0 |
DA202-4P ¡¹ |
4 |
12.6 |
19 |
DA202-8P ¡¹ |
8 |
16.4 |
35 |
DA203-2AL ¡¹ |
2 |
11.8 |
13 |
0.29(23)
7/0.23TA
Overall tin
coated |
42 |
¡X |
4.9 |
DA203-4AL ¡¹ |
4 |
13.8 |
19 |
DA203-8AL ¡¹ |
8 |
19.3 |
36 |
DA203-12AL ¡¹ |
12 |
21.9 |
48 |
¡¹Custom models. Please ask us for ordering lot. |
| Model |
Electrical characteristics |
Charac-
teristic
impedance |
Attenua-
tion |
| Cond. D.C.R. |
Shield D.C.R. |
Nom. cap. * |
Nom. cap. ** |
| £[/100m |
£[/100m |
pF/m |
pF/m |
£[ |
dB/100m (3MHz) |
DA206 |
3.3 |
1.4 |
48 |
73 |
110 |
2.6 |
DA202 |
10.6 |
2.2 |
45 |
¡X |
110 |
5.1 |
DA202AT |
10.6 |
¡X |
45 |
¡X |
110 |
6.7 |
DA203AL |
6.8 |
¡X |
48 |
95 |
110 |
5.4 |
DA202F-2P¡¹ |
11.3 |
3.0 |
47 |
95 |
110 |
5.6 |
DA202F-4P¡¹ |
DA202F-8P¡¹ |
DA202-2P ¡¹ |
10.7 |
2.3 |
45 |
¡X |
110 |
5.1 |
DA202-4P ¡¹ |
DA202-8P ¡¹ |
DA203-2AL ¡¹ |
6.9 |
¡X |
48 |
95 |
110 |
5.4 |
DA203-4AL ¡¹ |
DA203-8AL ¡¹ |
DA203-12AL ¡¹ |
*Capacitance between conductors **Capacitance between conductor and shield.
¡¹ Production by order. Please ask us for ordering lot.
|

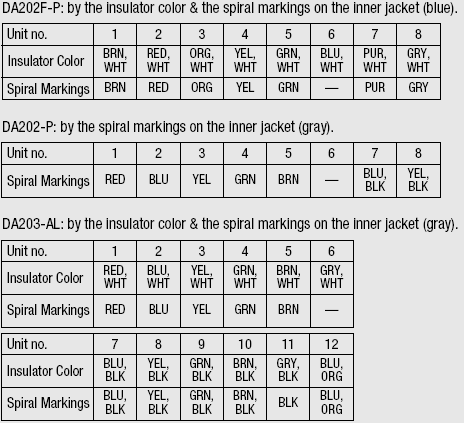

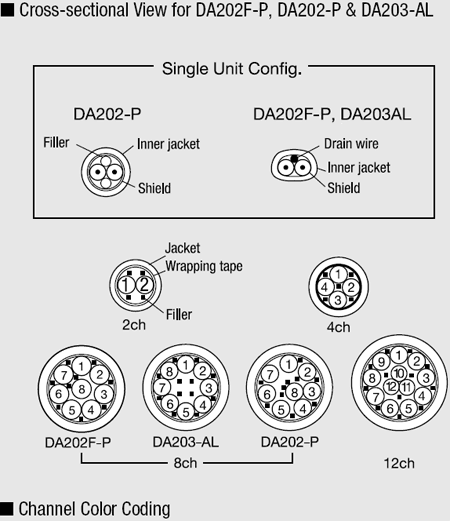

Insulation: Cross-linked PE (DA202F-*P: Cross-linked foam PE)
Jacket: PVC
Dielectric strength: 500V AC/min.
|
